| 재료: | 놋쇠 | 설치: | 기존 시스템과 쉽게 설치하고 통합합니다 |
|---|---|---|---|
| 주요 자료: | 3 배 합금 황동 도금 | 신뢰할 수 있음: | 99.9% 가동 시간 보증 |
| 접촉 자료: | 구리 도금 3 배 합금 | 제조사: | 베드 |
| 연락처 핀: | 황동 도금 3 배 합금 | 전력: | 1000-2000V |
| 정격 전류: | 250A | 접촉 저항: | 최대 0.005Ω |
| 응용 프로그램 온도: | -50 ~ +120 + | 절연체 재료: | PA66 |
| 강조하다: | High current lithium battery terminal,250A lithium battery terminal,Energy Storage Battery Terminal |
||
Structure
1. Red is the positive terminal, black is the negative terminal, used together.
2. The contacts are made of brass and plated with a ternary alloy, offering excellent corrosion resistance, good conductivity, and low contact resistance (0.003Ω).
3. Includes 8 M4*14 three-combination screws and nuts for securing the new energy plug terminals.
4. Black silicone gasket for excellent waterproofing.
Product Details

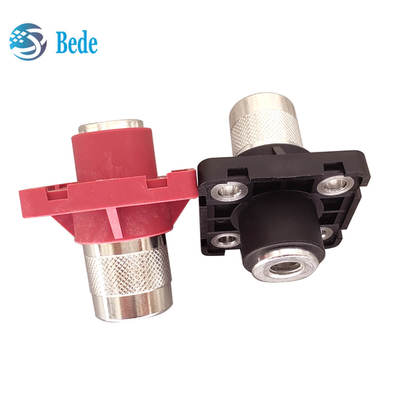

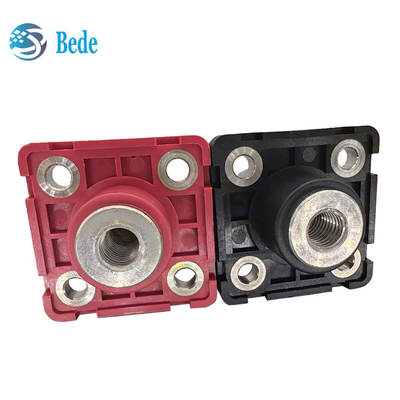

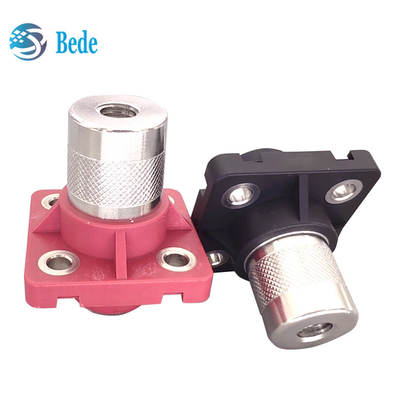

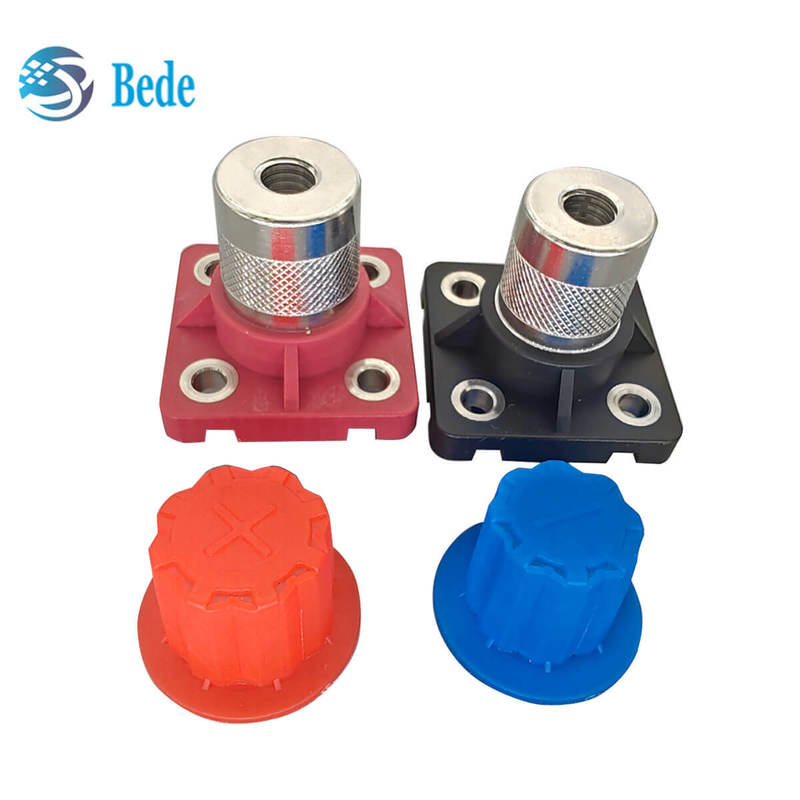

This connector is an energy storage plug suitable for parking air conditioners. Made of pure copper, it can handle a high current of 250A, offers excellent conductivity, and is safe and reliable. The insulation is made of high-temperature resistant nylon, which offers high mechanical strength, hardness, rigidity, flame retardancy, and heat resistance. The pure copper contact offers excellent conductivity and high temperature resistance. The ternary alloy coating provides high corrosion resistance and excellent impact, wear, and fatigue resistance. It is widely used in new energy power systems, electric vehicles, computer rooms, mobile batteries, and other power equipment. One set includes two positive and negative terminals, one black and one red.
