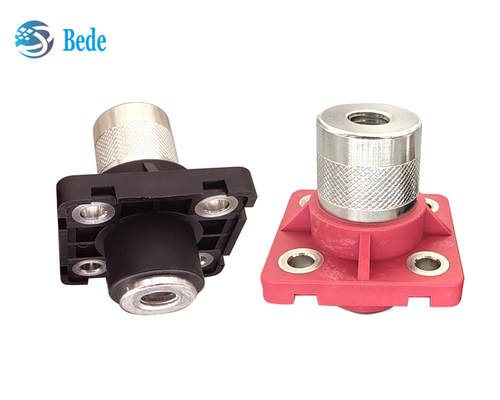

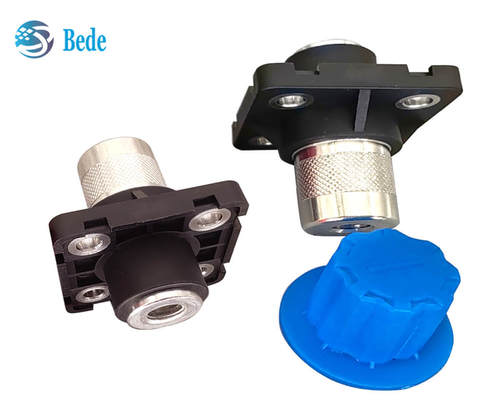

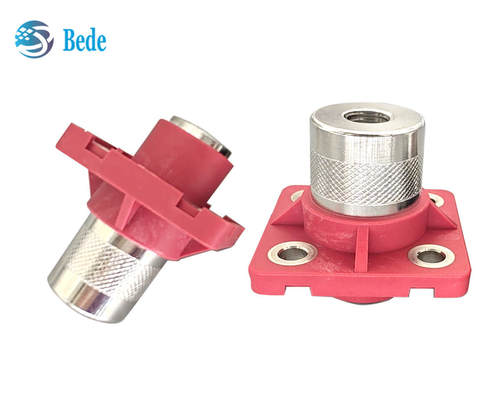

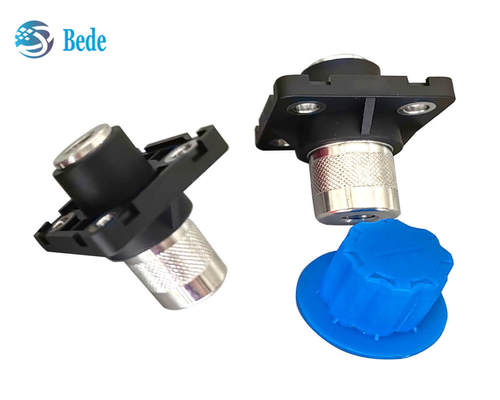

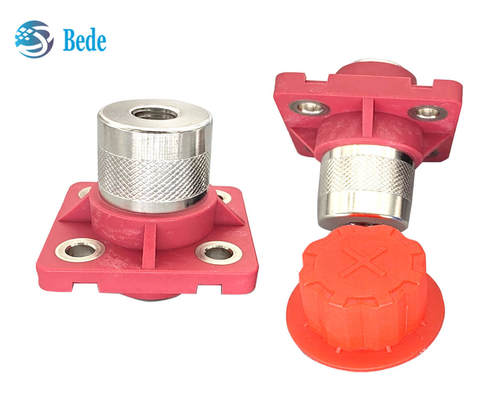

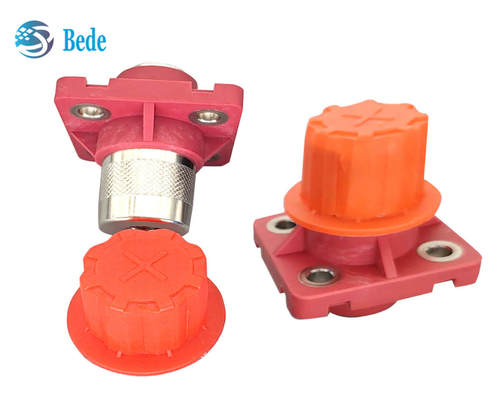

Lithium Battery Terminal Connector Wall Mounted Terminal For New Energy Storage 250A

Lithium Battery Terminal Connector Wall Mounted Terminal For New Energy Storage 250A

Main materials of battery terminal connector

1, Dust cover: PP material, red for positive terminal, blue for negative terminal

2, Brass terminal:  brass and plated with a ternary alloy, excellent corrosion resistance, good conductivity, and low contact resistance

3. Insulation materials: PA66, fireproof, flame retardant, UL 94-V0, red for positive terminal, black for negative terminal

4. Mounting holes, embedded copper pillars

5,waterproof gasket: silicone,red for positive terminal, black for negative terminal

Size of battery terminal connector

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.

Specification​ of battery terminal connector

1. Name: Copper lithium battery terminal
2. Color: red+black
3. Working temperature: -20-105℃
4. Flame retardant grade: V0
5. Rated current A: 250A
6. Rated voltage V: AC500V
7. Number of poles: 1P
8. Number of pin cores: 1 core
9. Joint Material: Copper
10. Socket Type: Direct
11. Wiring method: screw fixed
12. Installation method: panel installation
13. Scope of application: new energy lithium battery cabinet energy storage
14. Coming with the cable mounting bolt(M8x22)  and panel mounting bolts(M4*16) and nuts(M4)

Why choose us

1.Factory direct sales, stable delivery, and competitive pricing.

2. Customized services are available for various connectors.
