| 시리즈: | TE 슈퍼씰 1.0 | 핀: | 34개 핀 |
|---|---|---|---|
| 여성 부품 번호: | 4-1437290-0 | 남성 부품 번호: | 2-6447232-3 |
| 재료: | PA66+GF 하우징, 주석 도금/금도금 구리 단자 | 온도 범위: | -40C~+125C |
| 방수 등급: | IP67 | ||
| 강조하다: | 6447232-3 Superseal Automotive ECU Connector,4-1437290-0 Superseal Automotive ECU Connector,34 Pin Superseal Automotive ECU Connector |
||

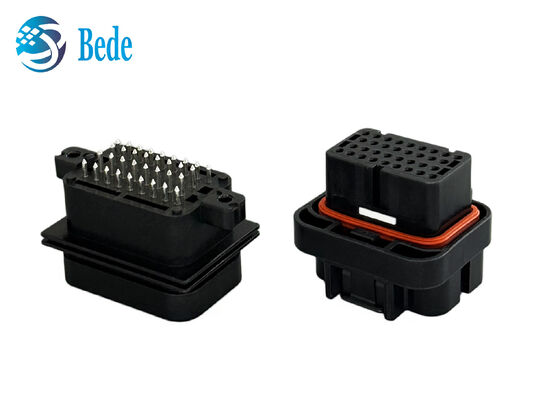

This 34-pin waterproof connector is a high-reliability interconnect solution designed for automotive electronic control systems. Fully compatible with TE/AMP SUPERSEAL 1.0 series, it includes a wire-side female plug and a PCB-mount male header. Built with automotive-grade materials and IP67 sealing, it ensures stable performance in harsh engine bay environments, supporting long-term operation under vibration, temperature changes, and moisture.
| Component | Features | TE Part Number | Specification |
|---|---|---|---|
| Female Housing (Wire Side) | Black PA66+GF, orange silicone seal, 34-hole 6×6 matrix, latch | 4-1437290-0 | Wire-to-board, IP67 |

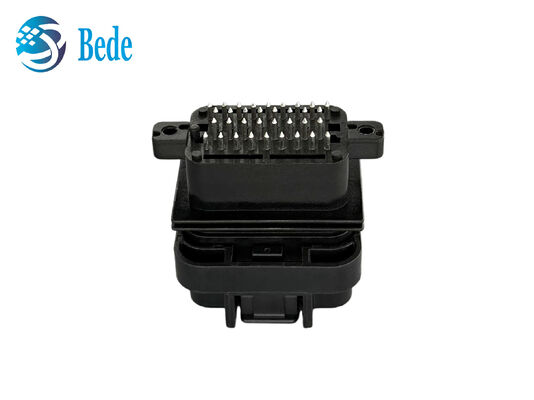

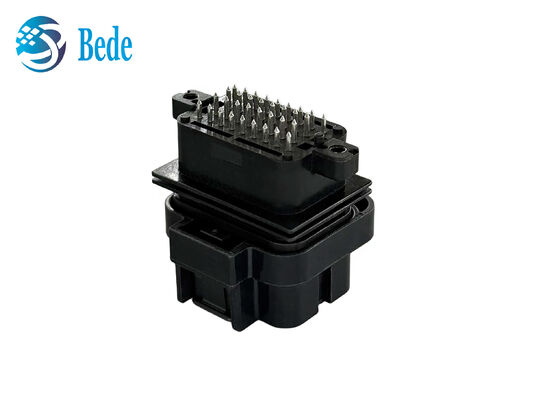

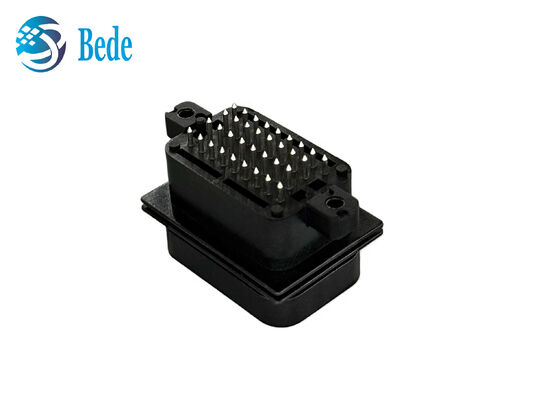

| Male Header (PCB Side) | Black PA66+GF, 34-pin vertical pins, mounting holes | 2-6447232-3 | PCB solder type |
| Pin Count | 34-Pin | - | Multi-signal & power |
| Protection | Integrated seal + latch | - | IP67 waterproof |
| Material | PA66+GF; tinned/gold-plated copper | - | |
| Temp Range | -40℃ to 125℃ | - | Engine bay suitable |
Crimp terminals properly before insertion. Align connectors and press until the latch locks. Solder male header firmly to PCB. Avoid excessive force; keep seals clean and store in dry conditions.
