원스톱 커넥터 및 사출 솔루션 제공업체
영업 및 지원:
|
제품 상세 정보:
결제 및 배송 조건:
|
| 시리즈: | 070 이코노실 마크-2 | 위치 수: | 12 |
|---|---|---|---|
| 행의 수: | 2 | 하우징 재료: | PBT |
| 온도 범위: | -30°C ~ +105°C | 난연성: | UL 94 V-2 |
| 커넥터 모양: | 직사각형 |

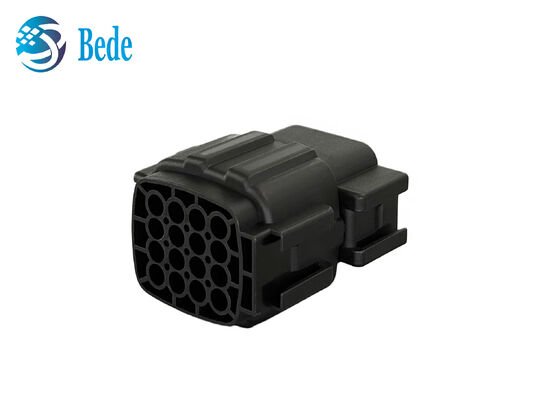

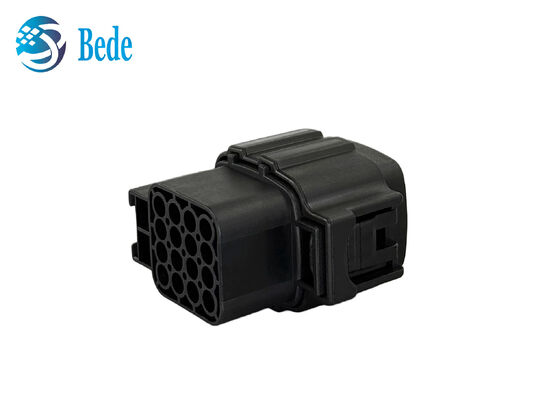

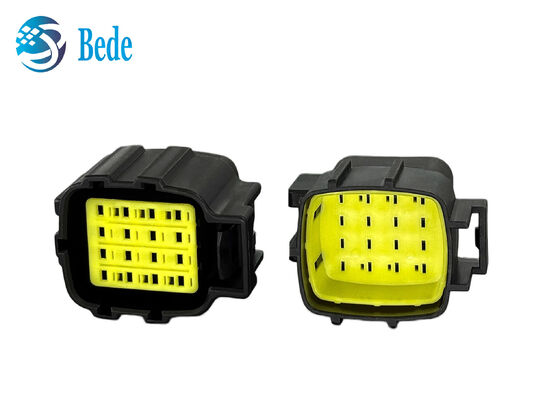

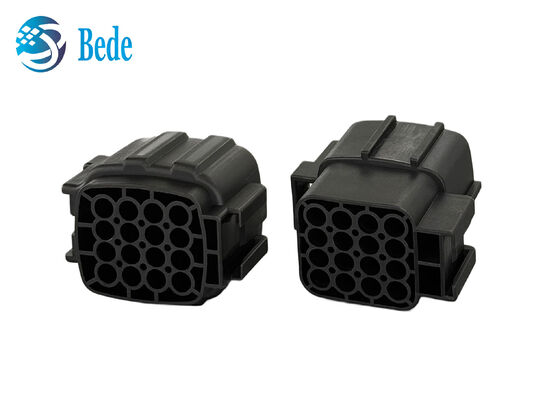

The 2822638-1 and 174663-2 are matching, wire-to-wire automotive connector components from TE Connectivity. They belong to the Econoseal J - Mark II / 070 Series, designed for harsh environments where exposure to moisture, dust, and vibration is expected.
| Specification | 2822638-1 | 174663-2 |
|---|---|---|
| Number of Positions | 12 | 12 |
| Connector & Housing Type | Housing for Female Terminals | Housing for Male Terminals |
| Operating Voltage | 24 VDC | 12 VDC |
| Rated Current | 11 Amps (max) | 11 Amps (max) |
| Contact Size | 1.8mm | 1.8mm |
| Temperature Range | -30°C to +105°C | -30°C to +105°C |
| Flame Retardancy | UL 94 V-2 | UL 94 V-2 |
| Connector Mounting Type | Cable Mount (Free-Hanging) | Cable Mount (Free-Hanging) |
