| 시리즈: | 앰프 수퍼씰 1.0 | 핀: | 26개 핀 |
|---|---|---|---|
| 여성 부품 번호: | 3-1437290-7 | 남성 부품 번호: | 9437287-8 |
| 재료: | PA66+GF 하우징, 주석 도금/금도금 구리 단자 | 온도 범위: | -40C~+125C |
| 방수 등급: | IP65 | ||
| 강조하다: | 26-Pin Automotive ECU Connector,3-Slots Automotive ECU Connector,Superseal Automotive ECU Connector |
||

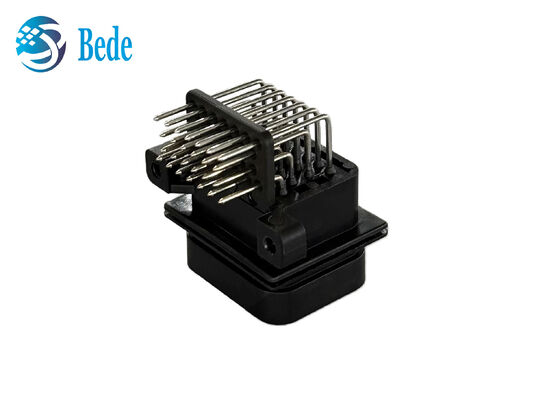

AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 6437288-4

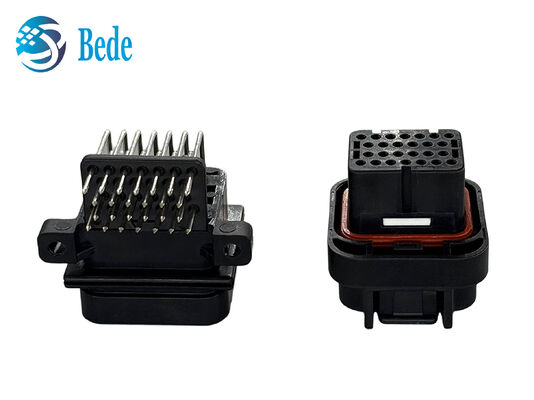

The 26-pin AMP SUPERSEAL 1.0 connector is engineered for harsh automotive environments. This complete assembly includes a right-angle male PCB pin header (for soldering to ECUs and control modules) and a female wire harness socket with an integrated red rubber seal, ensuring reliable wire-to-board connections and excellent sealing performance. Compact, durable, and high-performance, it is an ideal solution for demanding automotive electronic applications.
Product Specifications
Component
Features
TE Part Number
Specification
Pin / Cavity Count
26 positions (24 signal positions + 2 dummy blind holes, 4-row layout: 6+7+7+6)
-
Multi-signal & power transmission
Contact Pitch
1.0mm
-
Standard SUPERSEAL 1.0 spacing
Rated Current
Up to 15A per contact (compatible with 0.5~1.25mm² automotive wire harness)
-
High-current automotive application
Operating Temperature
-40℃ to +125℃
-
Engine bay suitable
Housing Material
PA66+GF (glass-filled nylon, UL94 V-0 flammability rating)
-
High-strength automotive-grade material
Contact Material
Copper alloy, gold-plated / tin-plated finish (anti-oxidation, enhanced conductivity)
-
High-reliability electrical contact
Mounting Style
Male: right-angle PCB solder type; Female: wire harness crimp type
-
PCB & wire harness installation

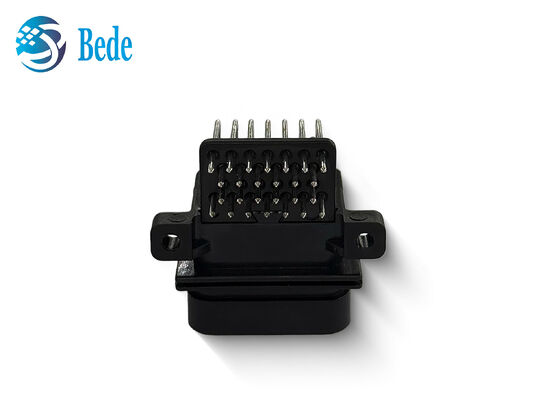

Male Header (PCB Side)
Black PA66+GF, 26-pin right-angle pins, mounting holes
9-6437287-8
Right-angle PCB solder type

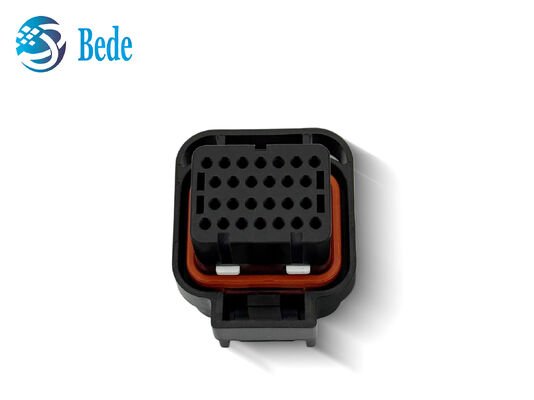

Female Housing (Wire Side)
Black PA66+GF, silicone seal, 26-hole 4-row layout, latch
3-1437290-7
Wire-to-board, IP65
Product Features
Applications
Installation: Solder male header to PCB; crimp female housing to harness and lock.
Notes: Avoid seal damage, align correctly, operate within rated specifications, and install in a clean environment.
