제품 상세 정보:
결제 및 배송 조건:
|
| 장착 유형: | 보드 마운트 | 핀: | 35개 핀 |
|---|---|---|---|
| 여성 부품 번호: | 1-776164-1 | 남성 부품 번호: | 1-776231-1 |
| 재료: | 검정색 PA66+GF(UL94 V-0), 구리 합금(주석/금도금) | 온도 범위: | -40C~+125C |
| 방수 등급: | IP67 | 행의 수: | 3 |
| 강조하다: | 35-Pin Automotive ECU Connector,1-776164-1 Automotive ECU Connector,AMP Automotive ECU Connector |
||
| Component | Features | TE Part Number | Specification |
|---|---|---|---|

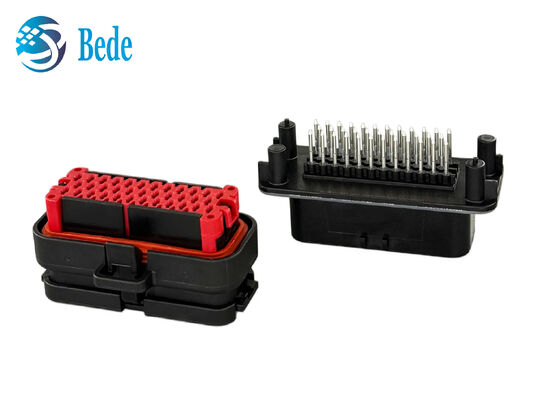

| Part Number | 35POS, pin dia 1.3, HDR Assy, 180deg, COD 1 | 1-776231-1 | Vertical through-hole PCB header |
| Rated Current | Up to 17A per contact, gold-plated mating area | - | Power & signal circuit applications |
| Mounting Style | Vertical, through-hole solder termination to PCB | - | Wire-to-board connection |

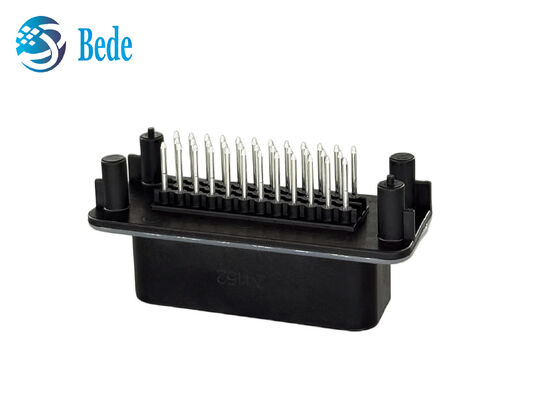

| Header Type | Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch | 1-776231-1 | Vertical PCB male header |

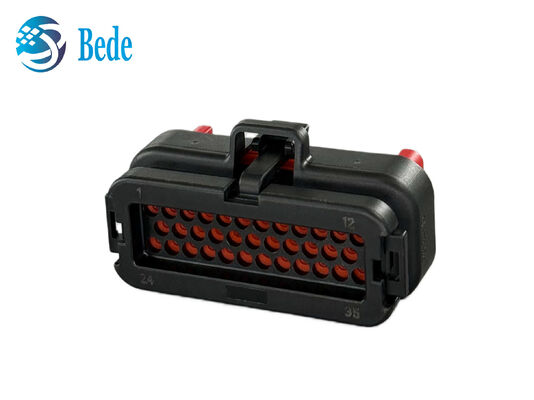

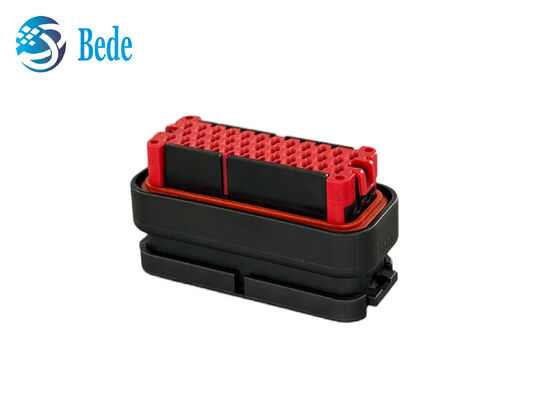

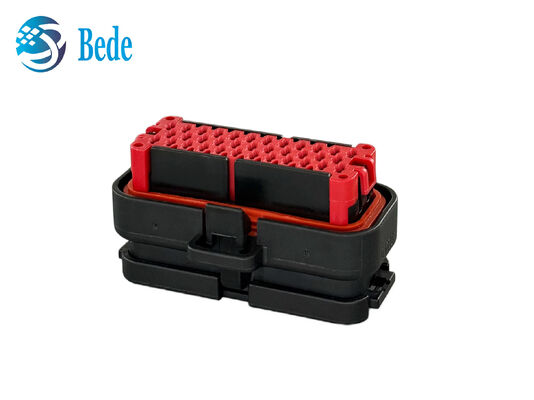

| Female Housing (Wire Side) | Integral silicone seal, red secondary lock, latch | 776164-1 | IP67 waterproof female connector |
| Sealability | Sealable design | - | Suitable for sealed environments |
| Housing Features | Black housing, keying code 1, UL 94V-0 flammability rating | - | Robust industrial construction |
| Operating Temperature | -40°C to 125°C | - | Wide-range environmental compatibility |
